Plug Brass Internal Hex 1/8" - 2" BSPT & NPT

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

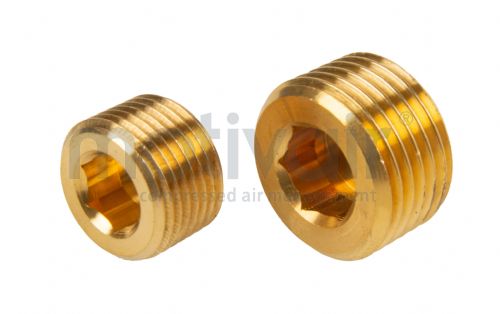

Brass internal hex male blanking plug available with tapered BSP and NPT threads.

Technical Details

Manufacturers Ref:	0205
Material	Brass
Temperature Range:	-40 to +150 Deg C

Working Pressure:
1/8"	200 bar
1/4"	200 bar
3/8"	200 bar
1/2"	200 bar
3/4"	150 bar
1"	150 bar
1 1/4"	100 bar
1 1/2"	100 bar
2"	100 bar

Datasheets

Plug Brass Internal Hex 1/8 - 2 BSPT & NPT datasheet

Click Here

Prices (Click quantity for more availability info)

	Legris Ref	Thread	Order Code	Available	Each
BSP Taper Threads
	0205 10 00	R1/8"	145581	0	£0.87
	0205 13 00	R1/4"	145582	11	£1.27
	0205 17 00	R3/8"	145583	29	£2.33
	0205 21 00	R1/2"	145584	25	£3.77
	0205 27 00	R3/4"	145585	8	£8.53
	0205 34 00	R1"	145586	9	£14.22
	0205 42 00	R1 1/4"	145587	5	£25.85
	0205 49 00	R1 1/2"	145588	2	£38.23
	0205 48 00	R2"	145589	2	£33.72
NPT Threads
	0205 11 00	1/8" NPT	145590	98	£1.82
	0205 14 00	1/4" NPT	145591	25	£3.72
	0205 18 00	3/8" NPT	145592	9	£6.03
	0205 22 00	1/2" NPT	145593	7	£6.10
	0205 28 00	3/4" NPT	145594	9	£9.77
	0205 35 00	1" NPT	145595	5	£20.93

(All Prices Exclude VAT)
